FT2520 (CMOS Output) |
|
|
|
|
|
|
|
 |
SMD Crystal OSC - CMOS Output

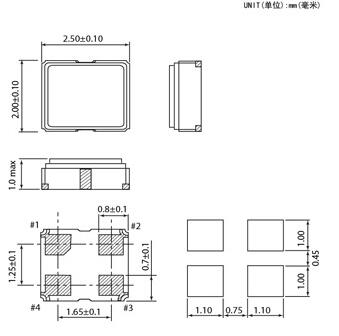

2.5*2.0*1.0mm (FT2520) |
 |
|
| Features |
|
|
|
Ultra-thin thickness 1.0mm. |
 |
|
|
It is a compact and thin ceramic package with a metalized lead for surface mounting that is able to be automatically loaded. |
 |
RoHS compliant and lead free. |
| Type |
SMD Crystal OSC - CMOS Output 2.5*2.0*1.0mm
|
| Freq. range |
1.25 ~ 54.0MHz
|
1.0 ~ 160.0MHz
|
1.75 ~ 60.0MHz
|
| Supply Voltage |
0.8V ~ 1.6V
|
1.6V ~ 3.6V
|
5.0V
|
| Frequency Stability |
±20ppm ~ ±100ppm
|
| Operating Temperature Range |
-20~+70¡æ (-40~+85¡æ is available)
|
| Storage Temperature Range |
-55~+125¡æ
|
| Current |
40mA Max.
|
| Load |
15pF
|
| Output Level |
CMOS
|
| Output Symmetry |
45~55 (at 50%VDD)
|
| Rise Time/Fall Time |
10nS Max.
|
| Min. Packing |
3,000pcs/Reel
|
|
|
|
|
